3000 times cycle life LiFePO4 12V 100Ah lithium battery with BMS for UPS/Solar application

Product Introduction

PRODUCT PARAMETER

Model	HWE-12.8V100AH	Peak Discharge Current	100A
Products Type	Lifepo4	Efficiency	98%
Energy (Wh)	1280	Depth of Discharge	100%
Nominal Voltage (Vdc)	12.8	Dimension (LWH, mm)	320169200/220
Nominal Capacity (AH)	100	Communication	/
Maximum Modules in Series/Parallel	2S	Protection Class	IP22
Charging Cut-off Voltage (Vdc)	14.6	Weight	13.0KG
Standard Charge Current	20A	Operation Life	10+ years
Recommended Charge Current	50A	Operation Cycle Life	Over 3000 times
Maximum Charge Current	100A	Operation Temperature	0-50℃
Discharge Cut-off Voltage	10V	Storage Temperature	-20 -- 60℃
Standard Discharge Current	20A	Products certificates	IEC62619, CE
Maximum Discharge Current	50A	Transport Certificates	UN38.3 , MSDS

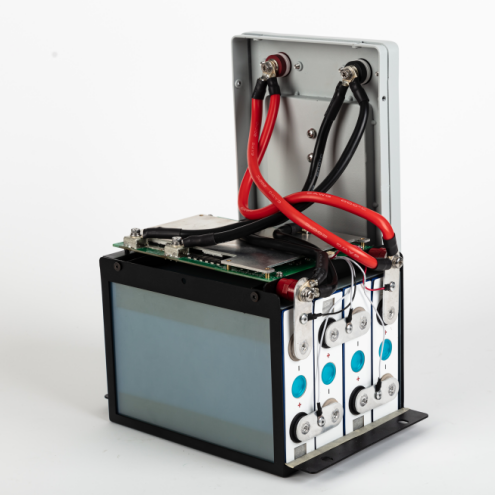

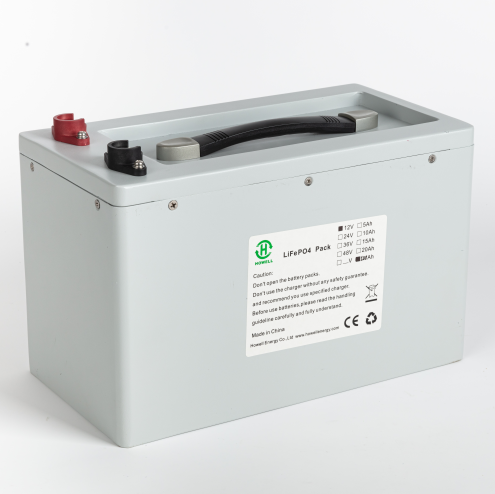

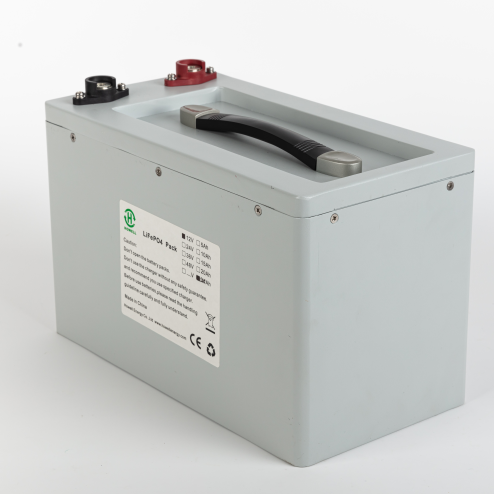

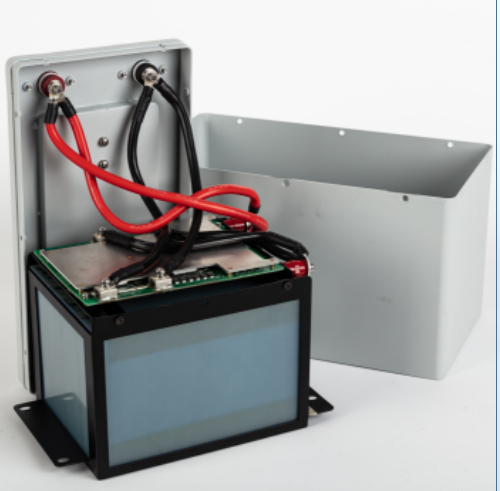

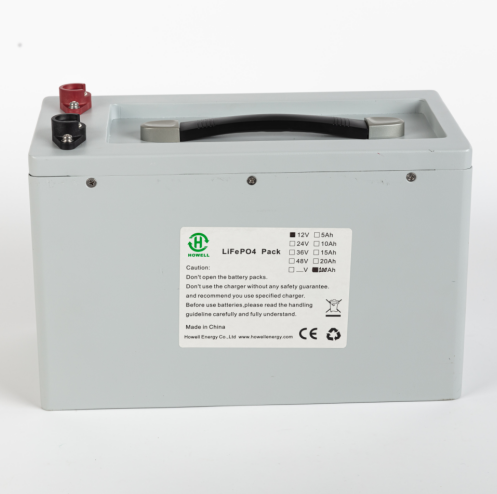

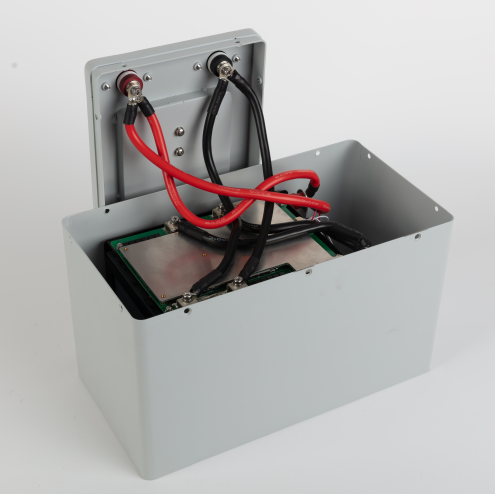

PRODUCTS DISPLAY

APPLICATION

RV/MOTORHOME
Wind and solar energy
Communication base station
Household energy storage
Electric vehicle
Yacht/BOAT

Howell 12V lithium battery ( LFP-lithium iron phosphate) is a kind of new environmental-friendly backup power system product made by our self-developed core technologies. The product has great features of short-time and high-rate discharge (1C) and over 3000 times of cycle life. With a built-in BMS, the product is fully protected under high-voltage protection and featured with higher reliability. It also has impressive weight reduction and high integration which can save more installation space. The product has no memory effect and enjoys free maintenance, saving a lot of labor for people. In addition, it enjoys over 10 years of operational life. 12V lithium battery is a perfect replacement for the conventional lead-acid, AGM, gel batteries for its high performance and increased efficiency and can be widely used in many fields like camping cars, RV motorhome, golf carts, boat marine yachts, electric skateboard, LED backup, engine starting battery, mobile POS and mining light.

PERFORMANCE CHARACTERISTICS

PRODUCTS ADVANTAGE

Product Highlights

●High integrated with less installation space.
●Long life cycle, >3000 times at 80% DOD.
●Internal BMS with full protection, high voltage protection with higher reliability.
●Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
●Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.
●No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
●98% Efficiency Rate
●Fast Charge & Discharge Rates
●Seamless Integration with All Industry Standard Inverter/Charge Controllers
●Modular, Scalable & Proven Performance

PACKING

Good Quality Packs

SUPER SAFETY TEST

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

WHY CHOOSE US

◆ Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
◆ Certification——North American Certification: UL
                                European certification: CE/ROHS/REACH/IEC62133
                                Asia and Australia Certificate: PSE/KC/CQC/BIS
                                Global certificate: CB/IEC62133/UN38.3/MSDS
◆ Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
                                    reliability.
◆ Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
◆ New batteries——all batteries are newly produced.

The Battery Model:	HWE-12.8V100AH
Nominal Voltage:	12.8V
Nominal Capacity:	100.0Ah
Cycle Life:	3000 times, 80% DOD
Recommended Charge Current:	20.0A
Max Charge Current:	100.0A
Max Discharge Current:	100.0A
Peak Discharge Current:	200.0A(≥3S)
Working Temperature:	-20 to 60ºC
Enclosure Protection:	Sheet metal shell
Dimension((L x W x H/TH)):	320 x 169 x 200/220mm
Weight:	13.0Kg
Certifications:	UN38.3,CE
