Application: Solar/Wind Energy Storage/lBack-up Power for UPS/ EPS/lTelecommunication/lLow Speed Electric Vehicles/lMarine Boats/lDC Power /lElectric Toys

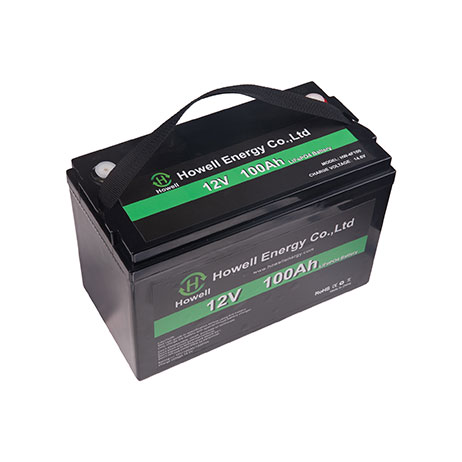

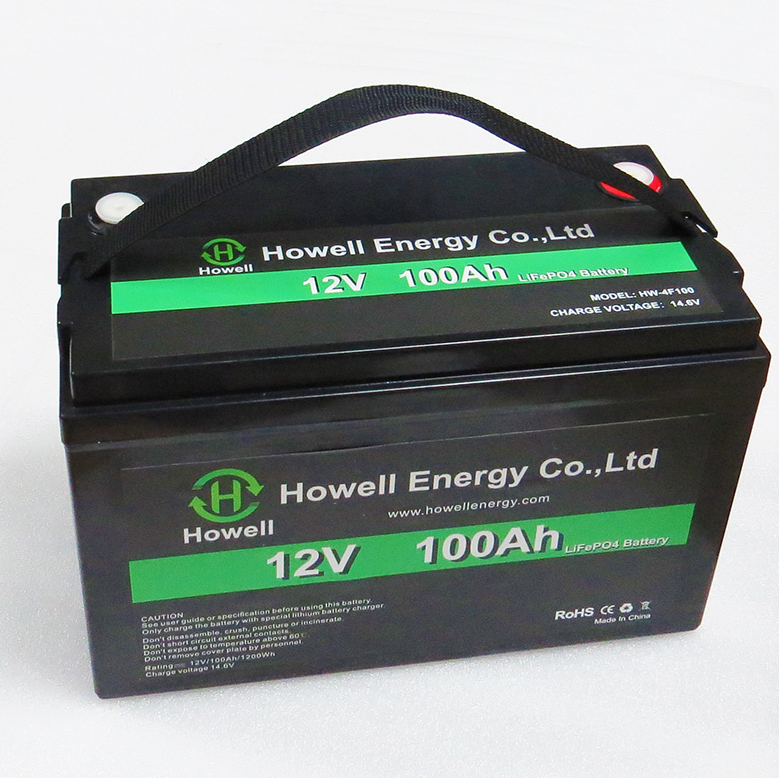

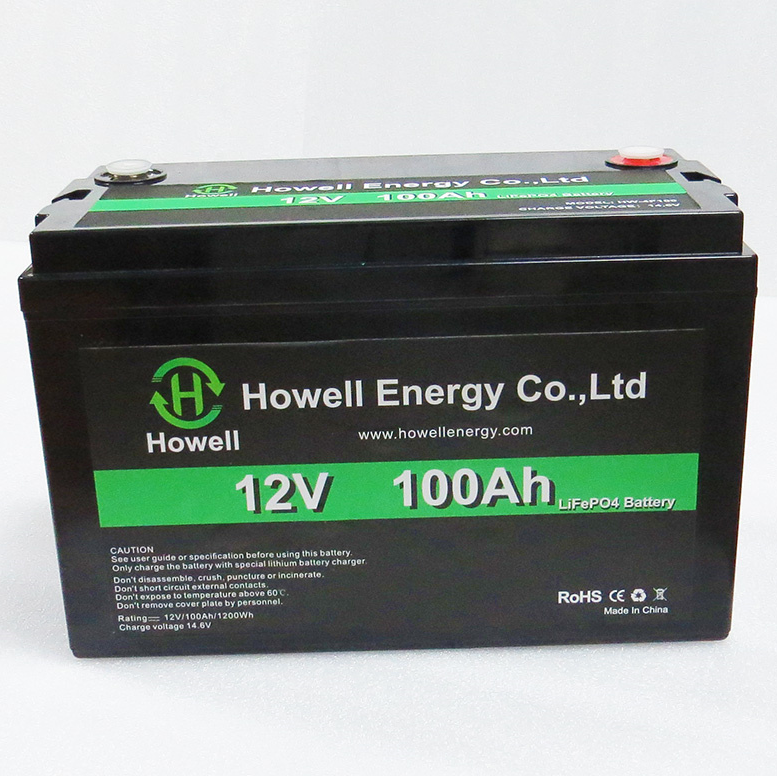

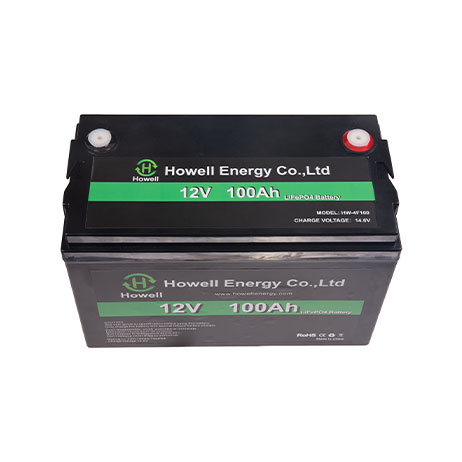

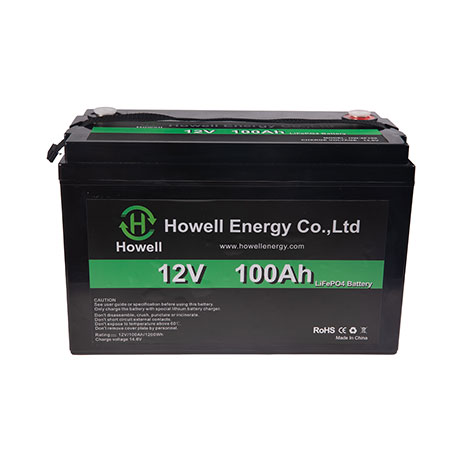

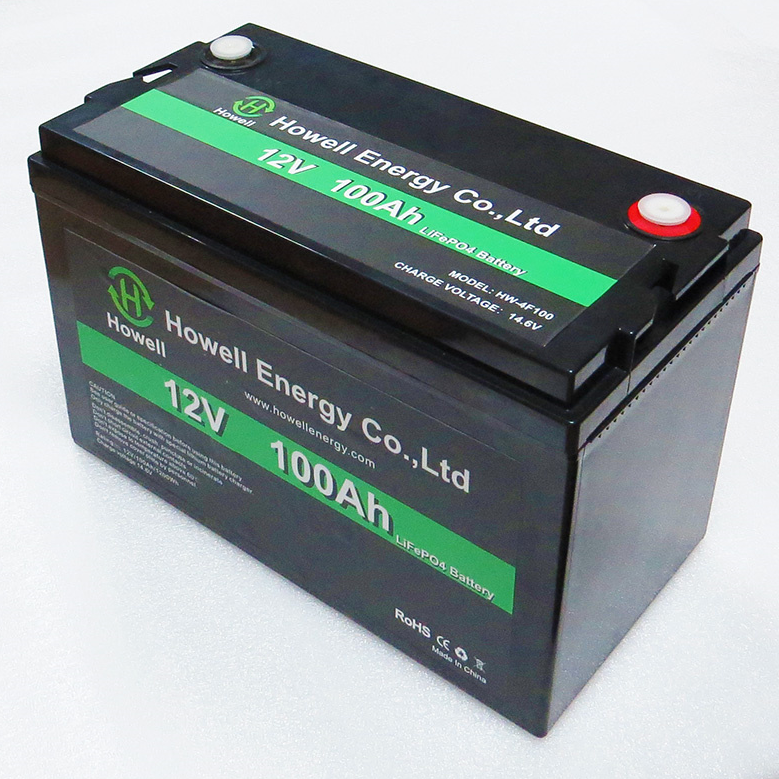

|The Battery Model:||HWE-4F100|
|Cycle Life:||3000 times, 80% DOD|
|Recommended Charge Current:||20.0A|
|Max Charge Current:||100.0A|
|Max Discharge Current:||100.0A|
|Peak Discharge Current:||300.0A(≥3S)|
|Working Temperature:||-20 to 60ºC|
|Dimension((L x W x H/TH)):||330 x 172 x 215/220mm|
|Model||MODEL : HWE-4F100||Peak Discharge Current||100A|
|Energy (Wh)||1280||Depth of Discharge||100%|
|Nominal Voltage (Vdc)||12.8||Dimension (L*W*H, mm)||330*172*215/220|
|Nominal Capacity (AH)||100||Communication||/|
|Maximum Modules in Series/Parallel||4S4P||Protection Class||IP65|
|Charging Cut-off Voltage (Vdc)||14.6||Weight||12.0KG|
|Standard Charge Current||20A||Operation Life||10+ years|
|Recommended Charge Current||50A||Operation Cycle Life||Over 3000 times|
|Maximum Charge Current||100A||Operation Temperature||0-50℃|
|Discharge Cut-off Voltage||10V||Storage Temperature||-20 -- 60 ℃|
|Standard Discharge Current||20A||Products certificates||IEC62619, CE|
|Maximum Discharge Current||50A||Transport Certificates||UN38.3 , MSDS|
1.It adopts lithium iron phosphate battery, which is environmentally friendly and safe.
2.The service life is long, the product can be guaranteed for 10 years, and the service life is more than 15 years.
3.Modular design, easy for customers to install and maintain.
4.Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.
5.The configuration is flexible, and different capacities can be configured according to customer needs.
6.The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection.
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
◆ Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
◆ Certification——North American Certification: UL
European certification: CE/ROHS/REACH/IEC62133
Asia and Australia Certificate: PSE/KC/CQC/BIS
Global certificate: CB/IEC62133/UN38.3/MSDS
◆ Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
◆ Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
◆ New batteries——all batteries are newly produced.
