Bluetooth intelligent communication management Lifepo4 12V 50Ah Lithium Battery

Application: Solar/Wind Energy Storage/lBack-up Power for UPS/ EPS/lTelecommunication/lLow Speed Electric Vehicles/lMarine Boats/lDC Power /lElectric Toys

The Battery Model: HW-4F50BT
Nominal Voltage: 12.8V
Nominal Capacity: 50.0Ah
Cycle Life: 3000 times, 80% DOD
Recommended Charge Current: 10.0A
Max Charge Current: 50.0A
Max Discharge Current: 50.0A
Peak Discharge Current: 100.0A(≥3s)
Working Temperature: -20 to 60℃
Enclosure Protection: ABS+PC
Dimension((L x W x H/TH)): 279 x 176 x 173mm
Weight: 7.5Kg
Certifications: UN38.3,CE


Product Introduction

PRODUCT PARAMETER

Model MODEL : HWE-4F50BT Peak Discharge Current 50A
Products Type Lifepo4 Efficiency 98%
Energy (Wh) 640 Depth of Discharge 100%
Nominal Voltage (Vdc) 12.8 Dimension (L*W*H, mm) 279*176*173
Nominal Capacity (AH) 50 Communication bluetooth
Maximum Modules in Series/Parallel 4S Protection Class IP65
Charging Cut-off Voltage (Vdc) 14.6 Weight 6.5KG
Standard Charge Current 10A Operation Life 10+ years
Recommended Charge Current 25A Operation Cycle Life Over 3000 times
Maximum Charge Current 50A Operation Temperature 0-50℃
Discharge Cut-off Voltage 10V Storage Temperature -20 -- 60 ℃
Standard Discharge Current 10A Products certificates CE
Maximum Discharge Current 50A Transport Certificates UN38.3 , MSDS

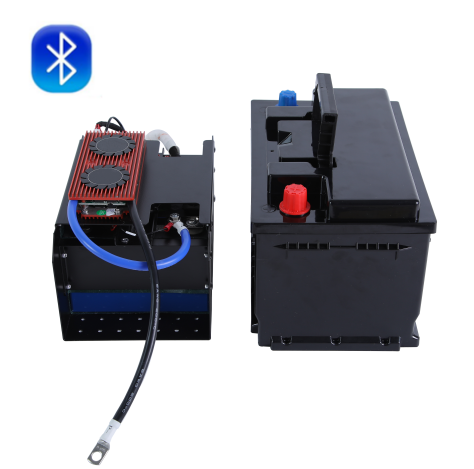

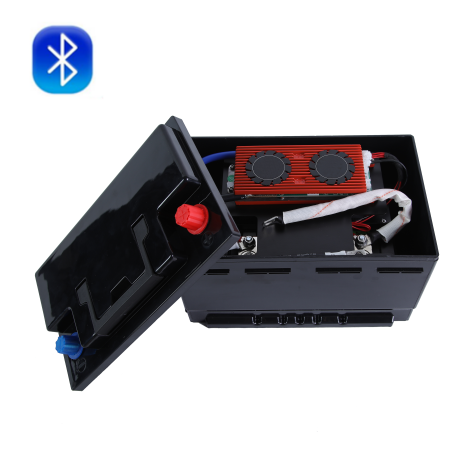

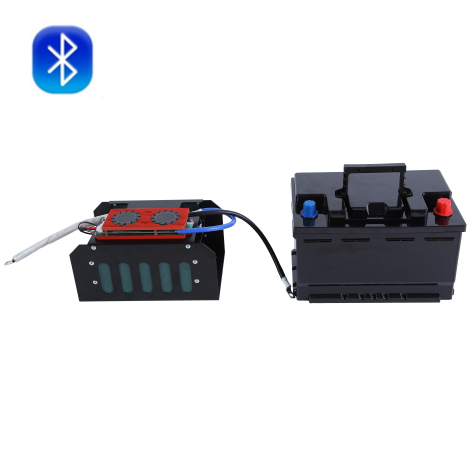

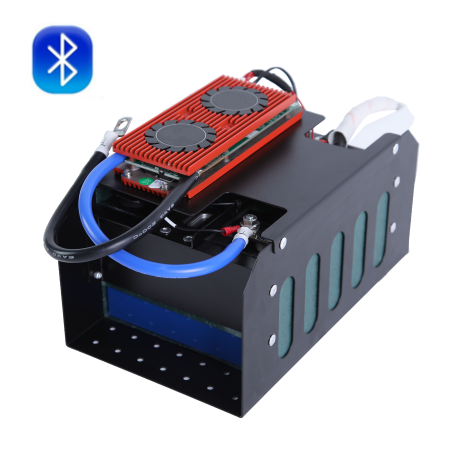

PRODUCTS DISPLAY





APPLICATION

  • RV/MOTORHOME

  • Wind and solar energy

  • Communication base station

  • Household energy storage

  • Electric vehicle

  • Yacht/BOAT

Howell 12V lithium battery ( LFP-lithium iron phosphate) is a kind of new environmental-friendly backup power system product made by our self-developed core technologies. The product has great features of short-time and high-rate discharge (1C) and over 3000 times of cycle life. With a built-in BMS, the product is fully protected under high-voltage protection and featured with higher reliability. It also has impressive weight reduction and high integration which can save more installation space.   The product has no memory effect and enjoys free maintenance, saving a lot of labor for people. In addition, it enjoys over 10 years of operational life.  12V lithium battery is a perfect replacement for the conventional lead-acid, AGM, gel batteries for its high performance and increased efficiency and can be widely used in many fields like camping cars, RV motorhome, golf carts, boat marine yachts, electric skateboard, LED backup, engine starting battery, mobile POS and mining light.

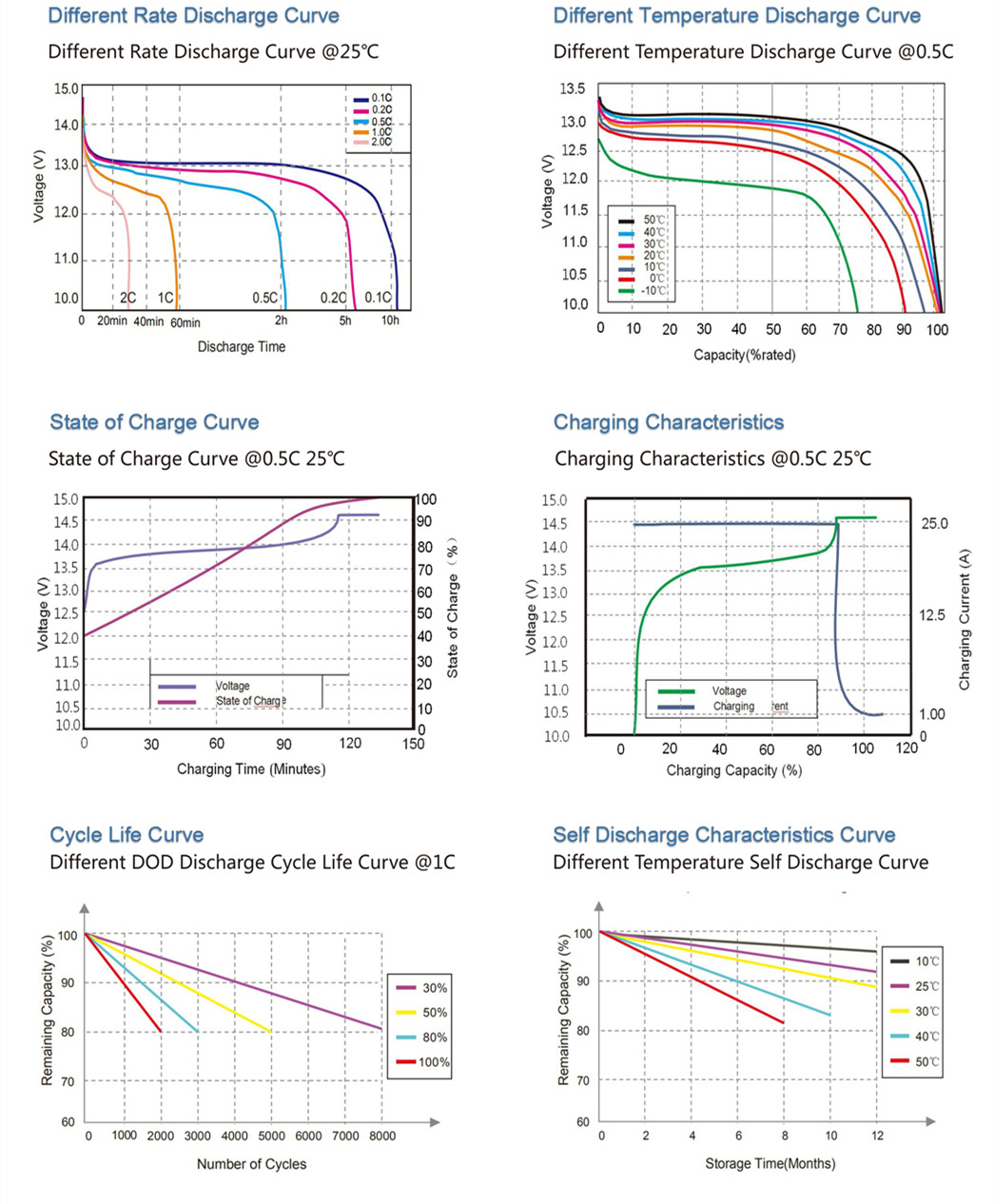

PERFORMANCE CHARACTERISTICS






PRODUCTS ADVANTAGE



1.It adopts lithium iron phosphate battery, which is environmentally friendly and safe.

2.The service life is long, the product can be guaranteed for 10 years, and the service life is more than 15 years.

3.Modular design, easy for customers to install and maintain.

4.Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.

5.The configuration is flexible, and different capacities can be configured according to customer needs.

6.The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection.



PACKING


Good Quality Packs


16669487730ebc80
VCKCG9IDDWC4}8028WP$FD6


SUPER SAFETY TEST



Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



WHY CHOOSE US


Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
Certification——North American Certification: UL
                                European certification: CE/ROHS/REACH/IEC62133
                                Asia and Australia Certificate: PSE/KC/CQC/BIS
                                Global certificate: CB/IEC62133/UN38.3/MSDS
Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
                                    reliability.
Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
New batteries——all batteries are newly produced.
