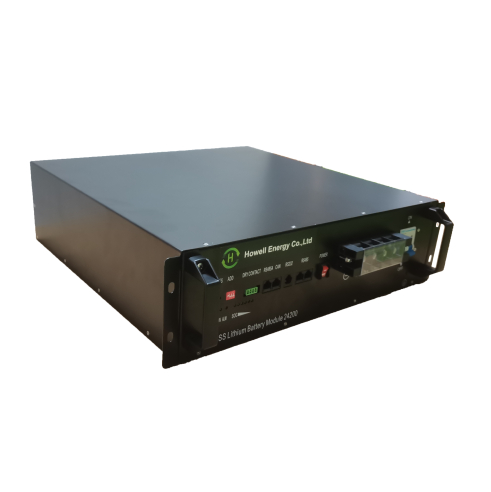

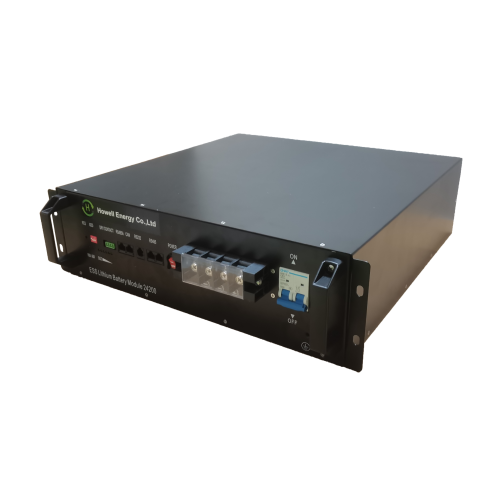

HOWELL 24V 5.12 kWh batteries are widely used in grid-connected or off-grid solar battery storage systems, and can be extended to any large-scale home or commercial system. Using the latest LiFePo4 battery, LiFePo4 battery life cycle is much longer than other types of lithium batteries, reducing maintenance costs in use. Deep cycle 24V 200Ah LiFePo4 battery module can be used with the most popular inverter.
| The Battery Model: | HW-25.6V 200Ah |
| Nominal Voltage: | 25.6V |
| Nominal Capacity: | 200.0Ah |
| Cycle Life: | 6000 times, 80% DOD |
| Recommended Charge Current: | 50.0A |
| Max Charge Current: | 100A |
| Max Discharge Current: | 100.0A |
| Peak Discharge Current: | 200.0A(≥3S) |
| Working Temperature: | -20 to 60ºC |
| Enclosure Protection: | Sheet metal shell |
| Dimension((L x W x H )): | 482 x 450 x 132.5mm |
| Weight: | 45Kg |
| Certifications: | UN38.3,CE |
| Model | HW-25.6V 200Ah | Peak Discharge Current | 200A |
| Products Type | LiFePO4 | Efficiency | 98% |
| Energy (Wh) | 5120 | Depth of Discharge | 100% |
| Nominal Voltage (Vdc) | 51.2 | Dimension (L*W*H, mm) | 132.5*450*482 |
| Nominal Capacity (AH) | 100 | Communication | Option of CANBUS OR RS485, RS232 |
| Maximum Modules in Series/Parallel | 16P | Protection Class | IP22 |
| Charging Cut-off Voltage (Vdc) | 29.2 | Weight | 45KG |
| Standard Charge Current | 20A | Operation Life | 10+ years |
| Recommended Charge Current | 50A | Operation Cycle Life | Over 6000 times |
| Maximum Charge Current | 100A | Operation Temperature | 0-50℃ |
| Discharge Cut-off Voltage | 40V | Storage Temperature | -20 -- 60 ℃ |
| Standard Discharge Current | 20A | Products certificates | CE |
| Maximum Discharge Current | 100A | Transport Certificates | UN38.3 , MSDS |
●High integrated with less installation space.

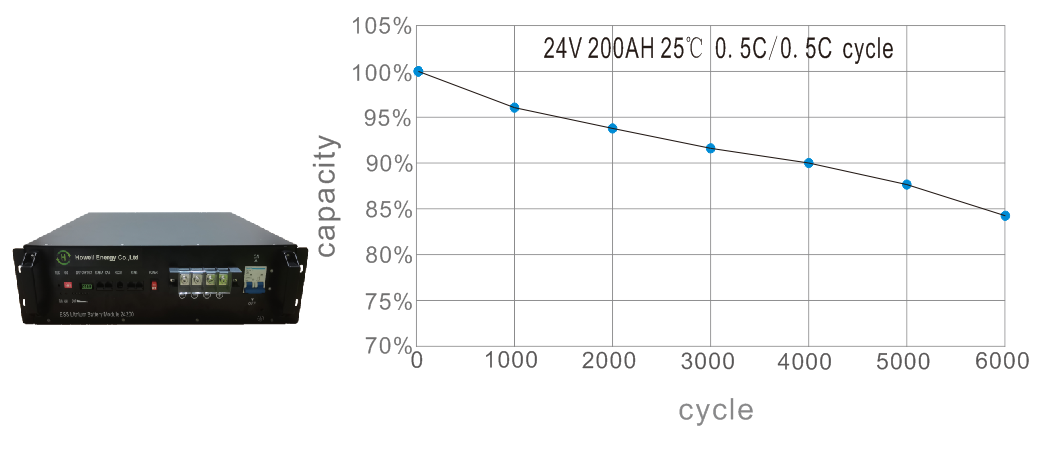

●Long life cycle, >6000 times at 80% DOD.
●Internal BMS with full protection, high voltage protection with higher reliability.
●Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
●Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.
●No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
●98% Efficiency Rate
●Fast Charge & Discharge Rates
●Seamless Integration with All Industry Standard Inverter/Charge Controllers
●Modular, Scalable & Proven Performance
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
◆ Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
◆ Certification——North American Certification: UL
European certification: CE/ROHS/REACH/IEC62133
Asia and Australia Certificate: PSE/KC/CQC/BIS
Global certificate: CB/IEC62133/UN38.3/MSDS
◆ Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
reliability.
◆ Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
◆ New batteries——all batteries are newly produced.
