Application: Solar/Wind Energy Storage/lBack-up Power for UPS/ EPS/lTelecommunication/lLow Speed Electric Vehicles/lMarine Boats/lDC Power /lElectric Toys

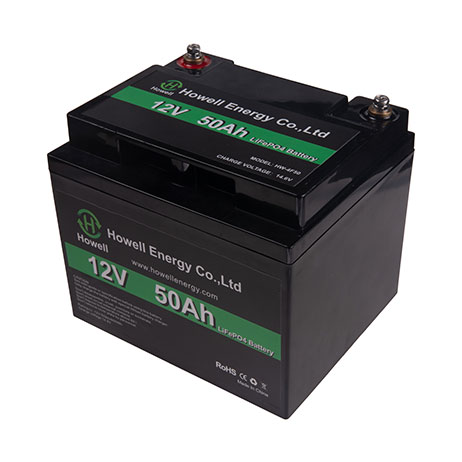

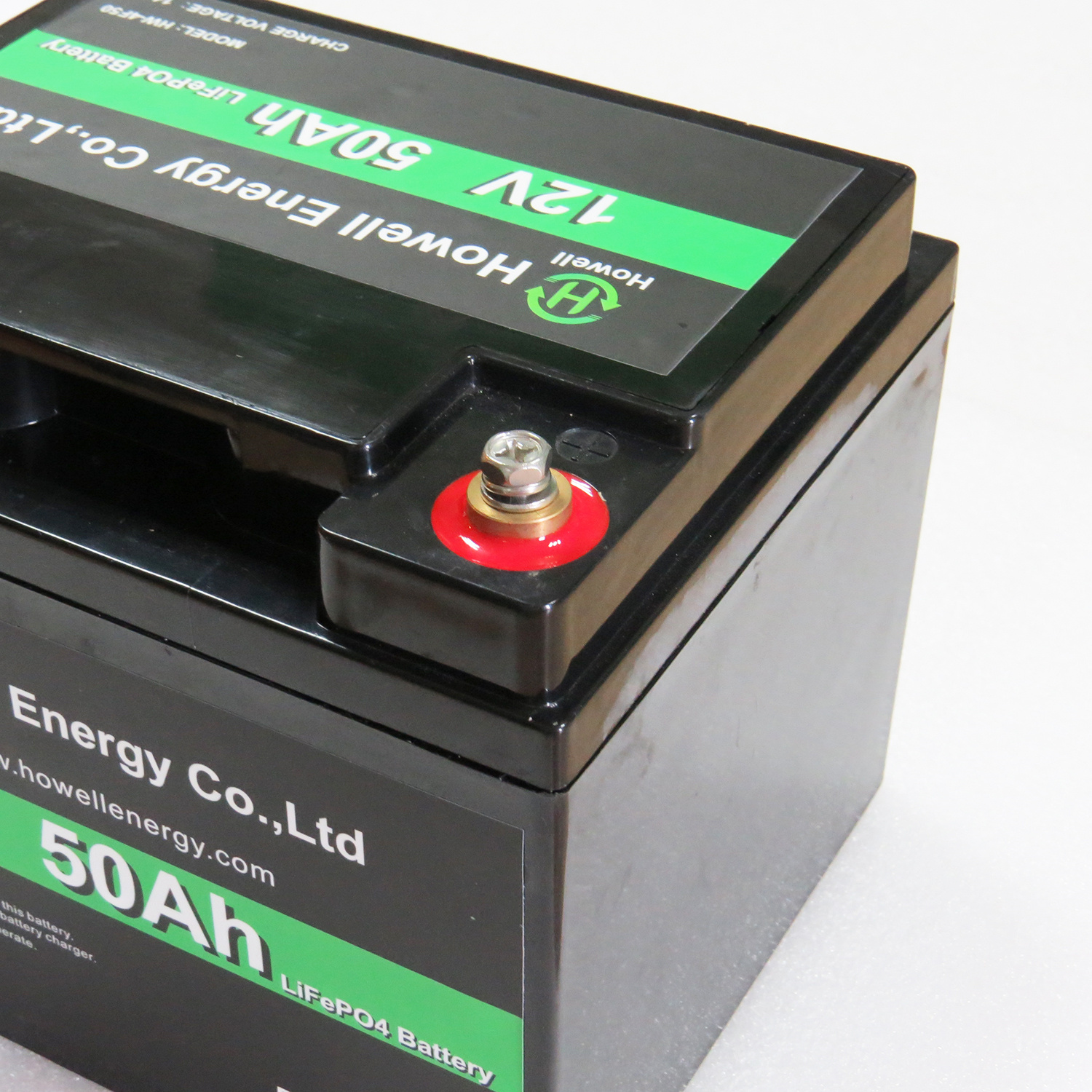

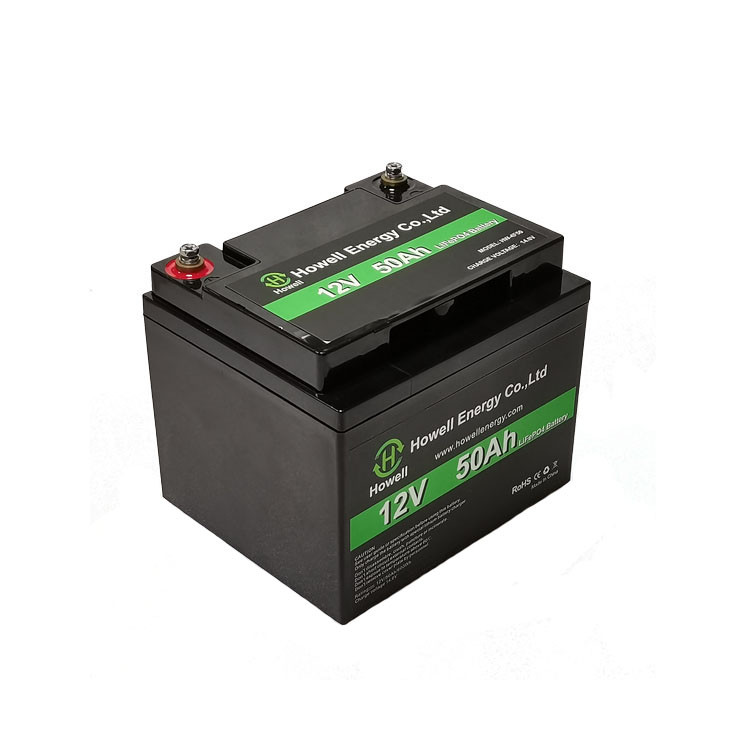

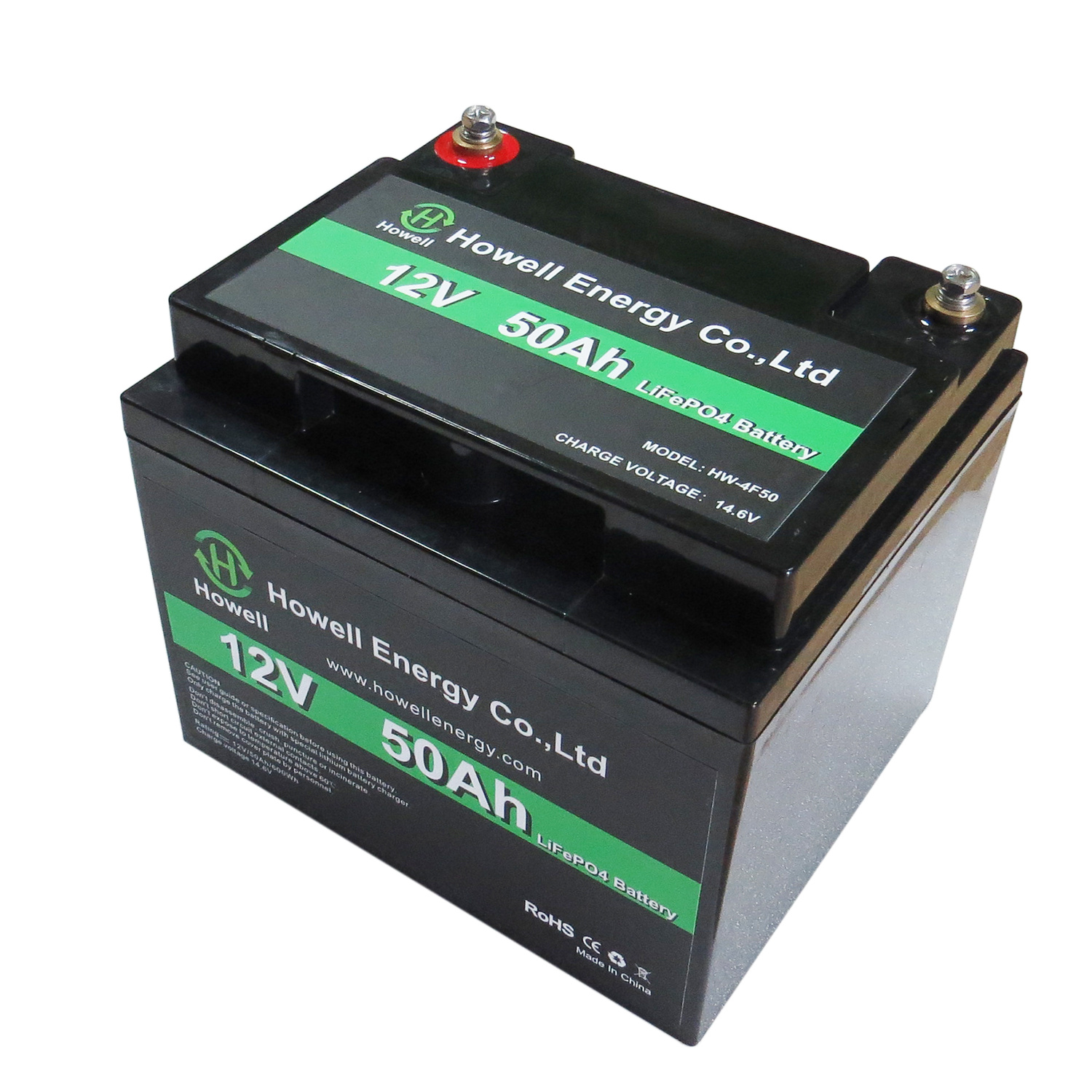

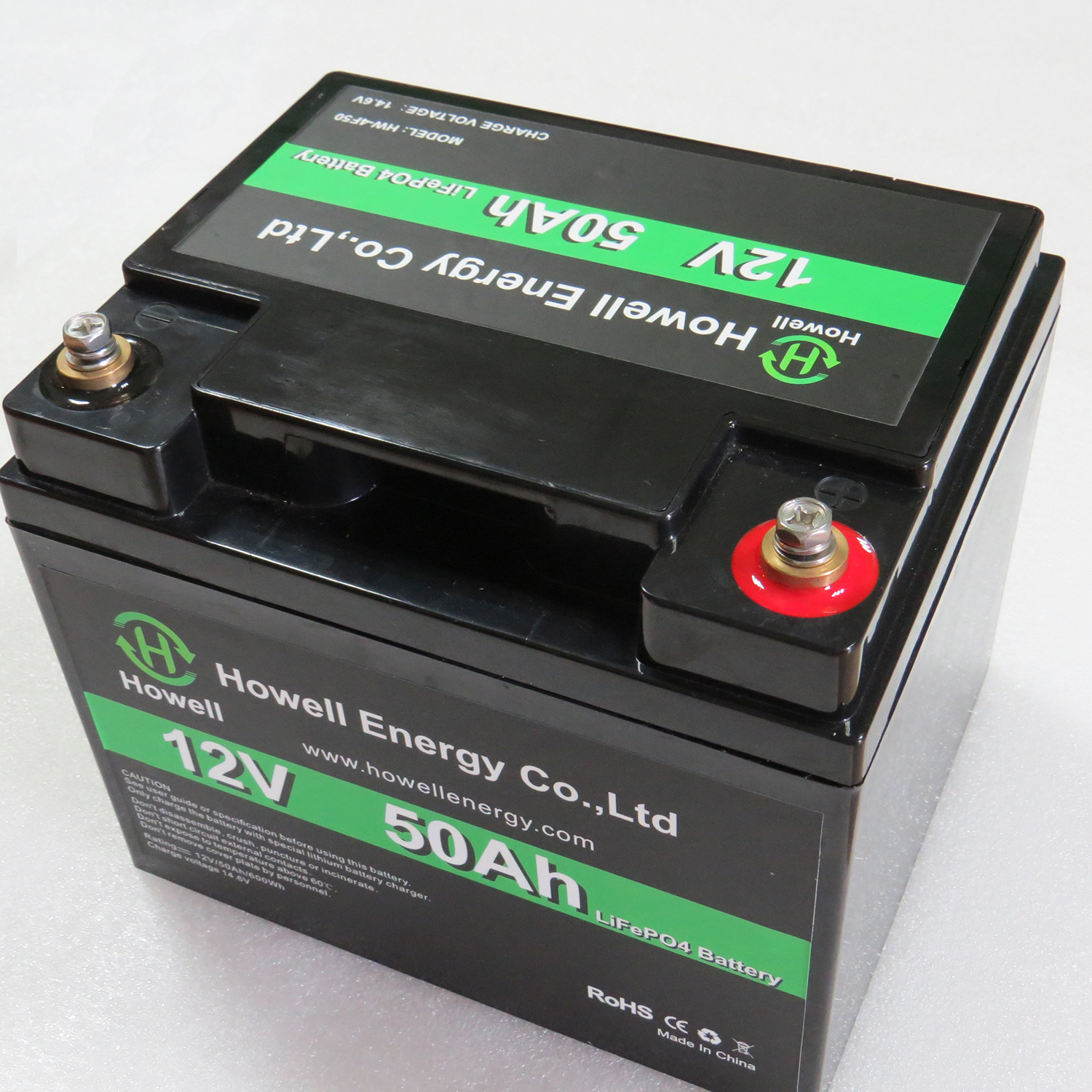

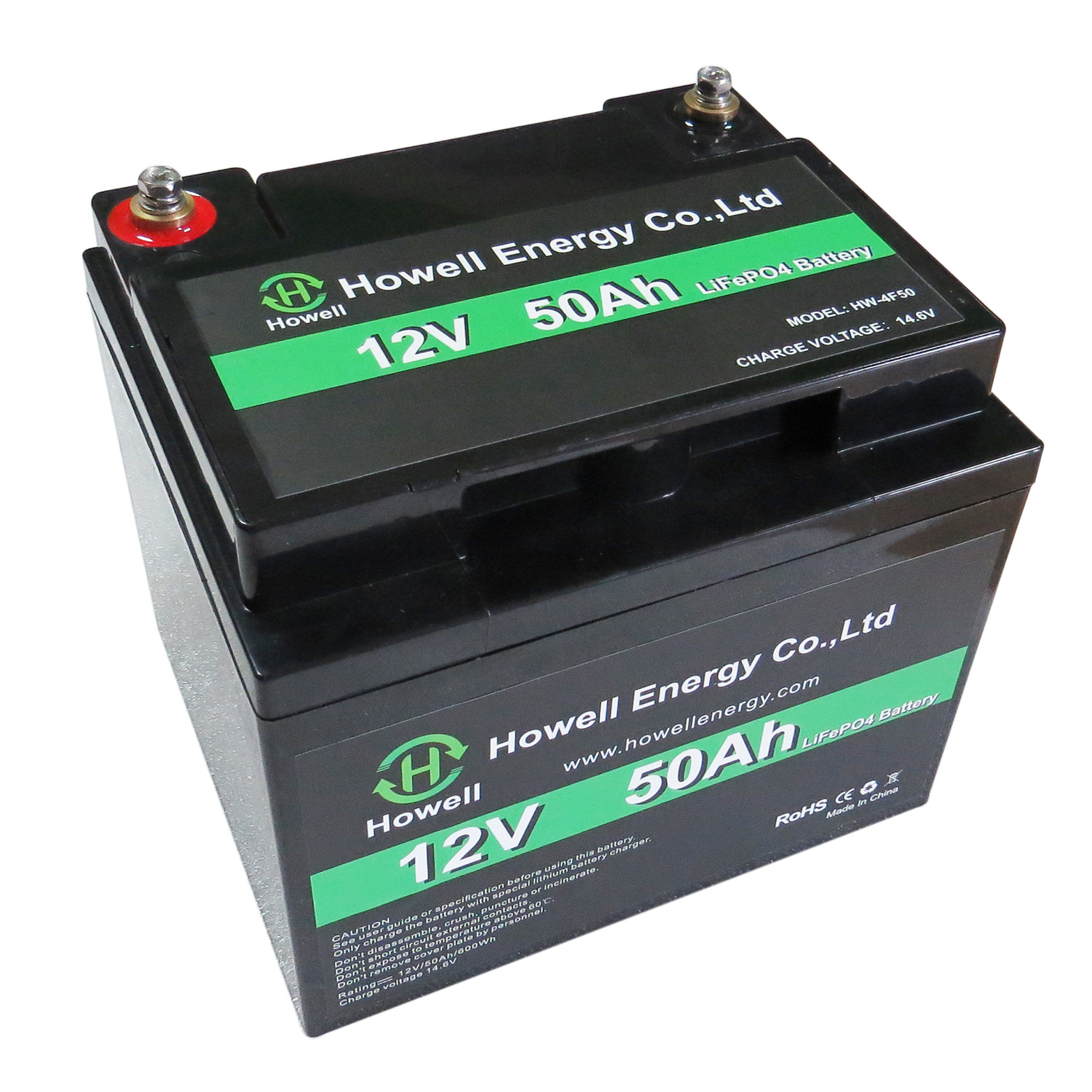

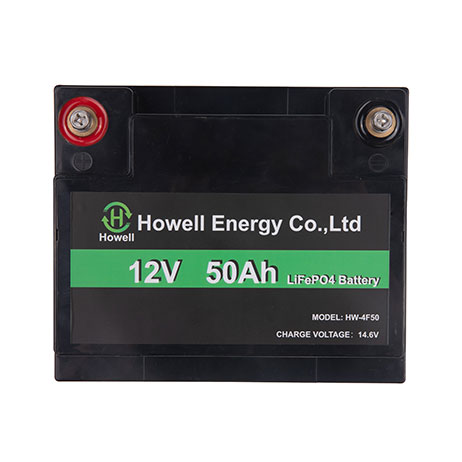

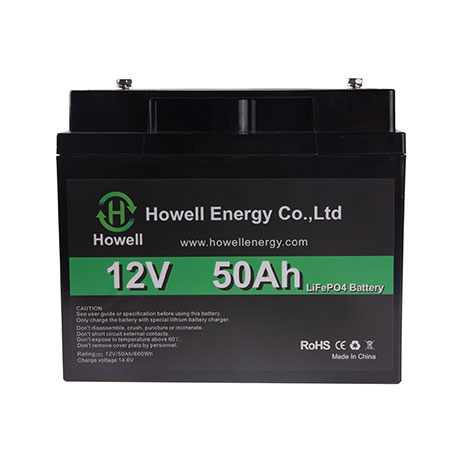

| The Battery Model: | HW-4F50 |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 50.0Ah |
| Cycle Life: | 3000 times, 80% DOD |
| Recommended Charge Current: | 10.0A |
| Max Charge Current: | 25A |
| Max Discharge Current: | 50A |
| Peak Discharge Current: | 100.0A(≥ 5S) |
| Working Temperature: | -20 to 60ºC |
| Enclosure Protection: | ABS+PC |
| Dimension((L x W x H/TH)): | 197 x 165 x 175mm |
| Weight: | 6.5Kg |
| Certifications: | UN38.3,CE |
| Model | MODEL : HW-4F50 | Peak Discharge Current | 50A |
| Products Type | Lifepo4 | Efficiency | 98% |
| Energy (Wh) | 640 | Depth of Discharge | 100% |
| Nominal Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 197*165*175 |
| Nominal Capacity (AH) | 50 | Communication | / |
| Maximum Modules in Series/Parallel | 2S | Protection Class | IP65 |
| Charging Cut-off Voltage (Vdc) | 14.6 | Weight | 6.5KG |
| Standard Charge Current | 5A | Operation Life | 10+ years |
| Recommended Charge Current | 10A | Operation Cycle Life | Over 3000 times |
| Maximum Charge Current | 25A | Operation Temperature | 0-50℃ |
| Discharge Cut-off Voltage | 10V | Storage Temperature | -20 -- 60 ℃ |
| Standard Discharge Current | 5A | Products certificates | IEC62619, CE |
| Maximum Discharge Current | 25A | Transport Certificates | UN38.3 , MSDS |
●High integrated with less installation space.
●Long life cycle, >3000 times at 80% DOD.
●Internal BMS with full protection, high voltage protection with higher reliability.
●Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
●Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.
●No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
●98% Efficiency Rate
●Fast Charge & Discharge Rates
●Seamless Integration with All Industry Standard Inverter/Charge Controllers
●Modular, Scalable & Proven Performance
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
◆ Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
◆ Certification——North American Certification: UL
European certification: CE/ROHS/REACH/IEC62133
Asia and Australia Certificate: PSE/KC/CQC/BIS
Global certificate: CB/IEC62133/UN38.3/MSDS
◆ Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
reliability.
◆ Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
◆ New batteries——all batteries are newly produced.
