5KWH Home battery light weight LiFePO4 48V 100Ah battery pack with RS485,RS232,CAN communication for home storage system

The HOWELL 48V li ion solar battery bank allows any unused energy produced by a photovoltaic system to be temporarily stored in a battery. With the leading BMS technology, 15-32 identical battery modules can be expanded, and the maximum capacity can reach 163kWh when connected in parallel.

Application: can be widely used in indoor distribution stations, integrated base stations, marginal stations, distributed power supply and other fields.


The Battery Model: HWE-16F100L
Nominal Voltage: 51.2V
Nominal Capacity: 100.0Ah
Cycle Life: 6000 times, 80% DOD
Recommended Charge Current: 50.0A
Max Charge Current: 100A
Max Discharge Current: 100.0A
Peak Discharge Current: 200.0A(≥3S)
Working Temperature: -20 to 60oC
Enclosure Protection: Sheet metal shell
Dimension((W xL xD)): 430 x 482 x 132.5mm
Weight: 48Kg
Certifications: UN38.3,CE


Product Introduction

56
7

PRODUCT PARAMETER

Model MODEL : HWE-16F100L Peak Discharge Current 200A
Products Type LiFePO4 Efficiency 98%
Energy (Wh) 5120 Depth of Discharge 100%
Nominal Voltage (Vdc) 51.2 Dimension (L*W*H, mm) 132.5*430*482
Nominal Capacity (AH) 100 Communication Option of CANBUS OR RS485, SMbus
Maximum Modules in Series/Parallel 16P Protection Class Ip21 (The battery cabinet supports Ip55)
Charging Cut-off Voltage (Vdc) 58.4 Weight 48KG
Standard Charge Current 20A Operation Life 10+ years
Recommended Charge Current 50A Operation Cycle Life Over 6000 times
Maximum Charge Current 100A Operation Temperature 0-50℃
Discharge Cut-off Voltage 40V Storage Temperature minus 20 -- 60 ℃
Standard Discharge Current 20A Products certificates  CE
Maximum Discharge Current 100A Transport Certificates UN38.3 , MSDS

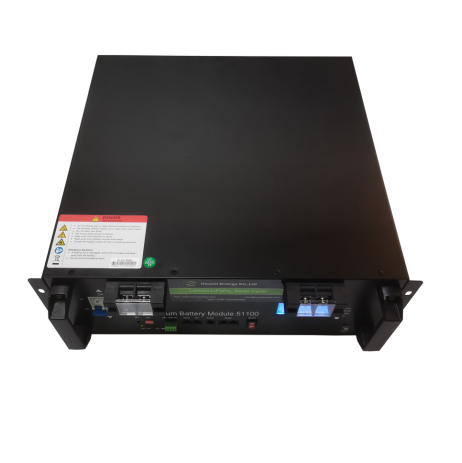

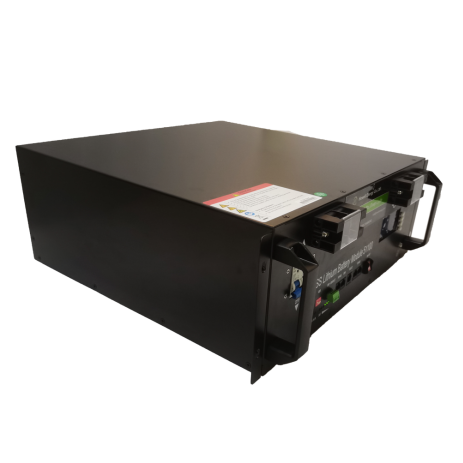

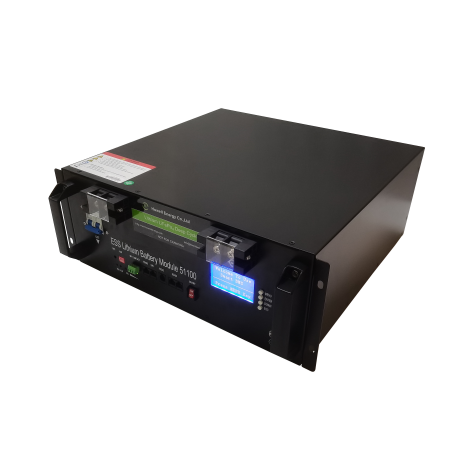

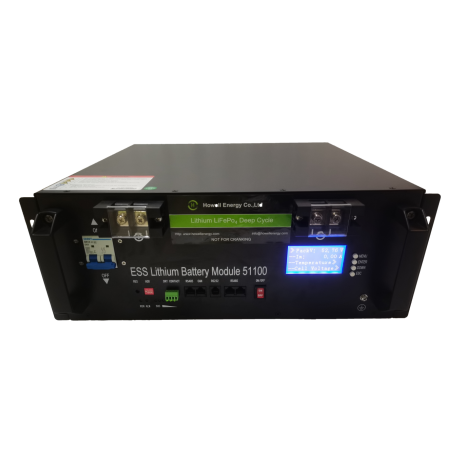

PRODUCTS DISPLAY

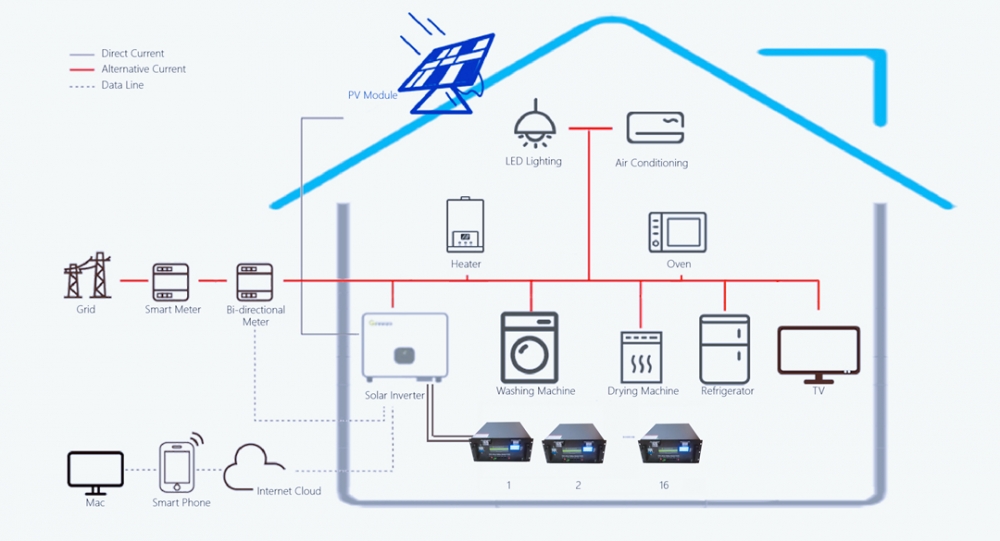

APPLICATION

  • RV/MOTORHOME

  • Wind and solar energy

  • Communication base station

  • Household energy storage

  • Electric vehicle

  • Yacht/BOAT

Howell 48V product is a new type of backup power supply for the development of high-tech products, with integration, miniaturization, light, intelligent, standardized, environmental protection and other characteristics, can be widely used in indoor distribution stations, integrated base stations, marginal stations, ETC,   specific power,  low temperature performance is superior, but large current charge and discharge, and many other advantages, at the same time,  using suitable for communication demand special high performance battery management system (BMS), with the charge, over discharge, short circuit, over-current (load), temperature, flow, total pressure protection,  charging under the secondary electricity, balanced and various protective functions,  and provides the bluetooth 、CAN 、RS485 communication interface and the upper machine to realize remote monitoring, can be connected to the base station

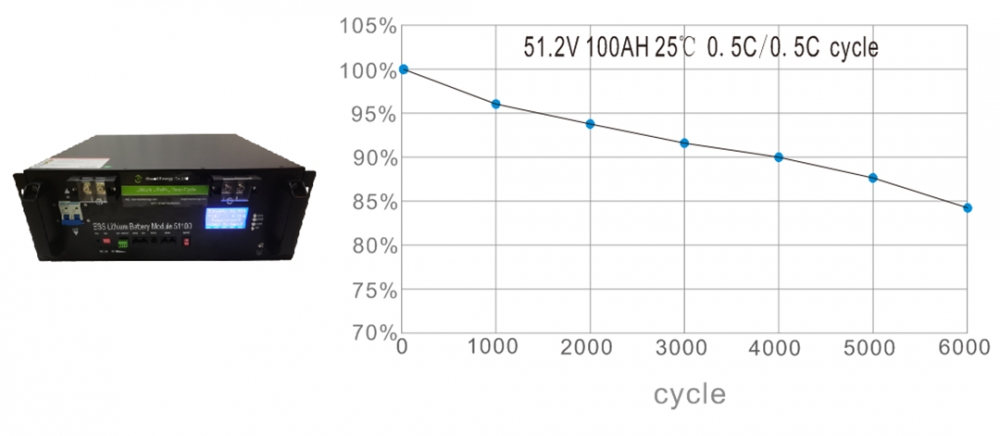

PERFORMANCE CHARACTERISTICS


12


PRODUCTS ADVANTAGE



Product Highlights

Module level auto-balancing
Compatible with over 20 inverters
Tier One, A+ Cell Composition
●5.12kWh expandable up to 163.84kWh.
AC Coupled for both new and retrofitted installations
Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
No Thermal Runaway with Fire Propagation
No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
Extended Operating Temperature -4 to 140F
98% Efficiency Rate
Fast Charge & Discharge Rates
≥ 6000 Cycle Life with a 10 Year Warranty
Cycle One to Several Times Per Day
Seamless Integration with All Industry Standard Inverter/Charge Controllers
Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation
Modular, Scalable & Proven Performance
UL rated battery pack.

THE WORLD’S SMARTEST BATTERY MANAGEMENT SYSTEM

1.It adopts lithium iron phosphate battery, which is environmentally friendly and safe.

2.The service life is long, the product can be guaranteed for 10 years, and the service life is more than 15 years.

3.Modular design, easy for customers to install and maintain.

4.Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.

5.The configuration is flexible, and different capacities can be configured according to customer needs.

6.The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection.


PACKING


Good Quality Packs


16669487730ebc80
VCKCG9IDDWC4}8028WP$FD6


SUPER SAFETY TEST



Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



WHY CHOOSE US


Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
Certification——North American Certification: UL
                                European certification: CE/ROHS/REACH/IEC62133
                                Asia and Australia Certificate: PSE/KC/CQC/BIS
                                Global certificate: CB/IEC62133/UN38.3/MSDS
Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
                                    reliability.
Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
New batteries——all batteries are newly produced.
